August 8, 2017 – Tomorrow, August 9th, Nevada Irrigation District (NID) Directors will meet in a special meeting at 1 pm at their district office in Grass Valley. On the agenda, an item on the consent calendar reads: 2017 Water Storage Investment Program: Adopt Resolution No. 2017-24.

Consent calendar items are routine items, like contract renewals, approving minutes of previous meetings etc. They are deemed non-controversial.

Consent item 4 is a resolution for an application to receive funding for Centennial Reservoir.

If approved by the directors, “the General Manager of the Nevada Irrigation District, or designee, is hereby authorized and directed to prepare the necessary data, conduct investigations, file such application, execute a funding agreement and any amendments thereto, and sign invoices with California Water Commission.

Local water needs or conveyance for the Delta?

Centennial Dam, the proposed reservoir on the Bear River between Rollins Lake and Combie Reservoir, has been billed by NID as the first climate change-driven reservoir. “The Centennial Reservoir will provide critical water storage to Nevada and Placer county residents. Amid historically devastating drought conditions, the Nevada Irrigation District (NID) is undertaking this project to sustainably meet the region’s existing water needs.” [source: Centennial Reservoir website] A quote by NID’s General Manager Rem Scherzinger on the website reads: “The Centennial Reservoir can achieve co-equal goals: we can meet the water needs of the community and we can enhance the area’s environmental and recreational needs.

Another “coequal” goal comes to light in a technical study published by the Association of California Water Agencies (ACWA) “The technical study’s findings suggest that adding storage assets to the system and operating them in an integrated way would result in significant value, including new water available to meet the coequal goals, protection of existing water supplies and a more resilient water system for both the environment and water users.“[source: ACWA website]

The study was commissioned in 2016 by ACWA with funding provided by CCWD, Metropolitan Water District of Southern California, Nevada Irrigation District, Friant Water Authority, Irvine Ranch Water District, and Sites Joint Powers Authority [source: Los Vaqueros Reservoir Expansion Project Draft Supplement to the Final EIS/EIR]

The study appears to highlight several new uses for water stored behind the dam: “Supply from Centennial may be used to augment American River supplies when Folsom has low storage conditions, and provide water supply reliability to urban water users, while enhancing temperature conditions in the lower American River.” Even Oroville could benefit from the new storage, according to the study “At times when Oroville releases are made to maintain adequate flows in the lower Feather River, Centennial releases may be integrated with Oroville releases to conserve storage levels in Oroville Reservoir.

The policy paper and the study are focused on the $2.7 billion funding from Prop.1  “The first-of-its kind study is intended to spark discussion about a new approach to water storage integration as the California Water Commission conducts its public process to allocate $2.7 billion from Proposition 1 to help fund water storage projects.

This is the funding NID intends to apply for, with the Environmental Impact Report (EIR) for the project not expected to be available before the end of 2017 or early 2018.

ACWA Study

The ACWA technical study summarizes each proposed reservoir and its potential benefits. Below is the relevant portion for Centennial:

Overview

Figure 34. Location of Centennial Reservoir Source: ACWA technical study

Nevada Irrigation District (NID) is proposing a new storage facility within the Bear River Watershed, called Centennial Reservoir, which is to be used as a part of the Yuba-Bear Project and would have a capacity of approximately 110 TAF. Centennial would be located immediately upstream of NID’s Lake Combie and downstream of NID’s Rollins Reservoir. Figure 34 shows the general location of the proposed Centennial Reservoir on the Bear River.

The Bear River system, which is tributary to the Feather River, is “connected” to the upper American River system by canals that convey water between the two basins upstream of Folsom Lake. Supply from Centennial may be used to augment American River supplies when Folsom has low storage conditions, and provide water supply reliability to urban water users, while enhancing temperature conditions in the lower American River. Releases from Centennial to the American River may also help conserve storage in Shasta, and contribute water supply benefits to the CVP/SWP system, including in areas that rely on Delta exports. Releases from Centennial may also be used to augment flow in the lower Bear River, below Camp Far West Reservoir, and the lower Feather River. At times when Oroville releases are made to maintain adequate flows in the lower Feather River, Centennial releases may be integrated with Oroville releases to conserve storage levels in Oroville Reservoir.

Available Surplus

There is an annual average of 260 TAF of surplus in the Bear River. Figure 35 contains average annual Bear River surplus by water year type. There is an average surplus of 7 TAF in critical years, and approximately a half a million acre feet of surplus in wet years. In general, surplus is available in the Bear River system from December through May, with very little surplus available during the summer months (Figure 36). Although surplus is available in the Bear system in most years, there have been periods spanning 3-years when no surplus above what would be stored for local supply was available (Figure 37).

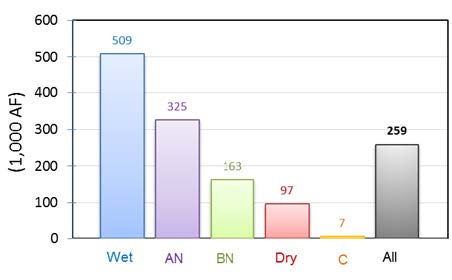

Figure 35. Annual Average Bear River Surplus by Water Year Type

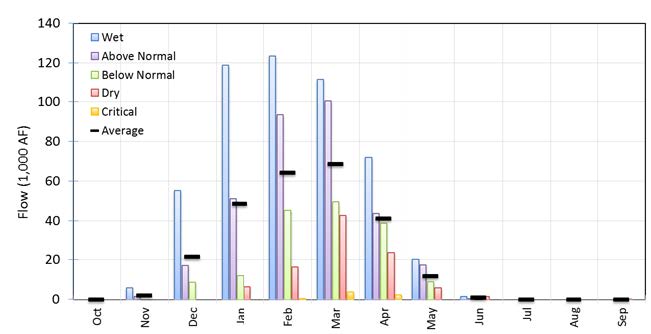

Figure 36. Monthly Average Bear River Surplus by Water Year Type

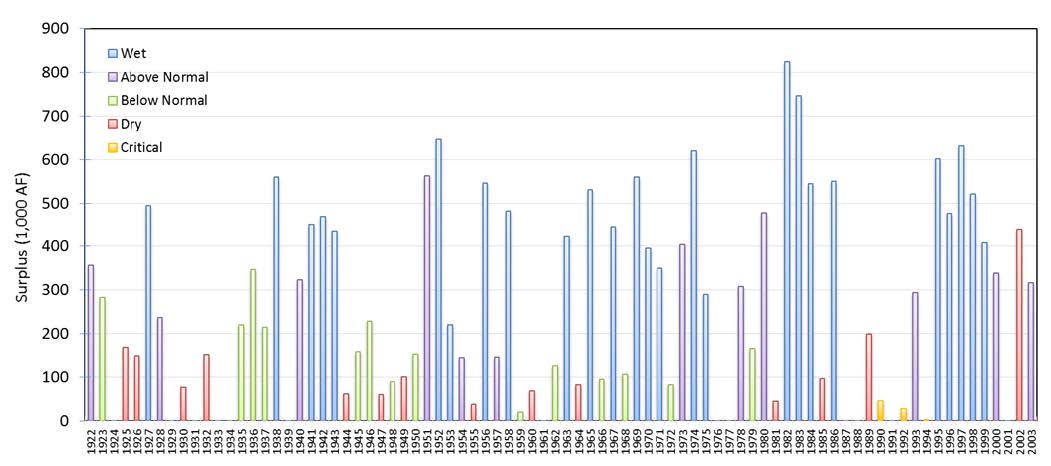

Figure 37. Annual Bear River Surplus by Water Year Type

Analytical Results

There are numerous possible ways Centennial Reservoir may be operated and integrated with operations of existing facilities. For the purpose of this analysis two operational scenarios are used to demonstrate how Centennial Reservoir may be operated with the CVP/SWP system. In both scenarios, Centennial Reservoir operates to augment American River supplies when Folsom carryover storage is forecasted to be below 350 TAF. Releases are made down the Bear River to augment system-wide supply when CVP South-of-Delta agricultural water service contract allocations are below 20 percent. In this analysis, CVP allocations are used as a simple indicator of system conditions, and releases down the Bear River are integrated with both the CVP and SWP and shared among the projects. Releases are only made from Centennial Reservoir when its carryover storage is forecasted to be above 40 TAF. Figure 38 contains a bar chart showing Centennial Reservoir carryover storage, when operated only for NID, with the orange portion of the bars indicating the volume of storage available for use outside NID. Figure 39 contains a bar chart showing Centennial Reservoir carryover storage with system integration; the black points are storage without integration and the blue bars are storage with integration. Figure 40 contains an annual bar chart showing how much water from Centennial is delivered to the American River and how much water is released down the Bear River and on to the Feather. While the average annual release to the Bear and American rivers is 3 TAF each, total annual releases can be as much as 50 TAF, which is significant during critical years.

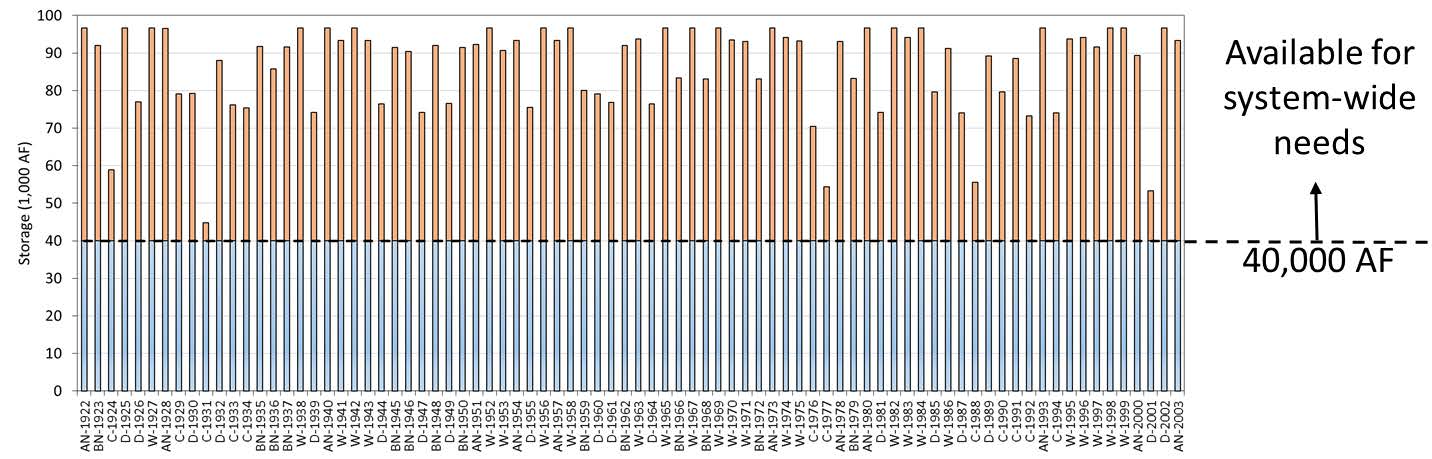

Figure 38. Centennial Reservoir End of September Storage when Operated for “Local” Needs

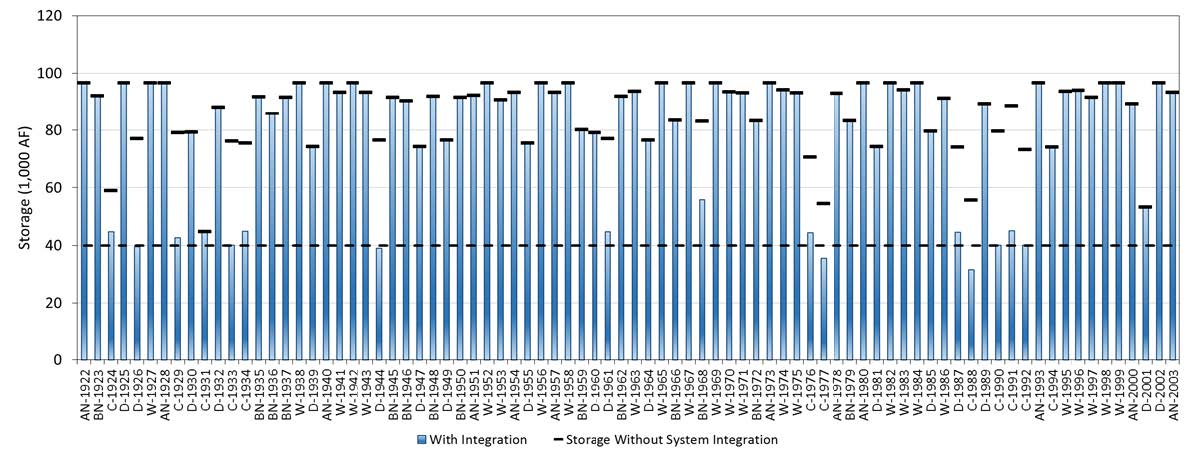

Figure 39. Centennial Reservoir End of September Storage with Integrated Operation

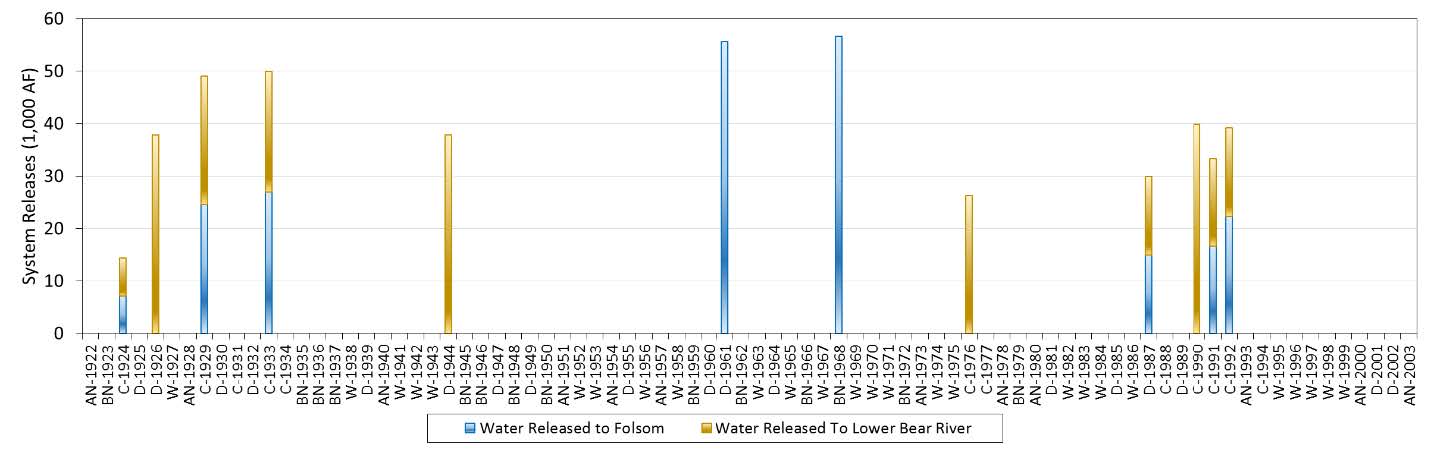

Figure 40. Centennial Releases for Integrated Operation
